TowPro by TSM-Systems

Insurance approved Advanced Tow System

This system alerts crews ahead of problems becoming an incident, and allows more favourable insurance terms, allowing yachts to tow at night, further distances and in more extreme conditions. Featuring a robust VHF based telemetry link backed up by Iridium between tender and yacht. Crews can monitor the tender on and off tow on a private network. Constant monitoring of the tender include Battery level, Bilge Level, Bilge Pump activity, Pitch, Yaw and Roll.

  • Towing mode and Monitoring mode
  • Continuously streams live information to a yacht bridge from tenders whether in use or on tow.
  • Alerts on individual tender data can be set by user (Bilge, Battery etc.)
  • Local Geofence setting in case of adrift.
  • Can be interfaced easily with existing chart plotter on a yacht bridge
  • Can be interfaced with existing Alarm Management System (AMS) of the yacht.
  • Transmits data free via VHF and uses satellite as a back up.
  • Should a tow line break:
  • Immediate alert to the bridge via VHF
  • It turns itself into a class B AIS, broadcasting its position
  • Iridium Transponder starts broadcasting the tenders position and sends information to the crew.

Further information

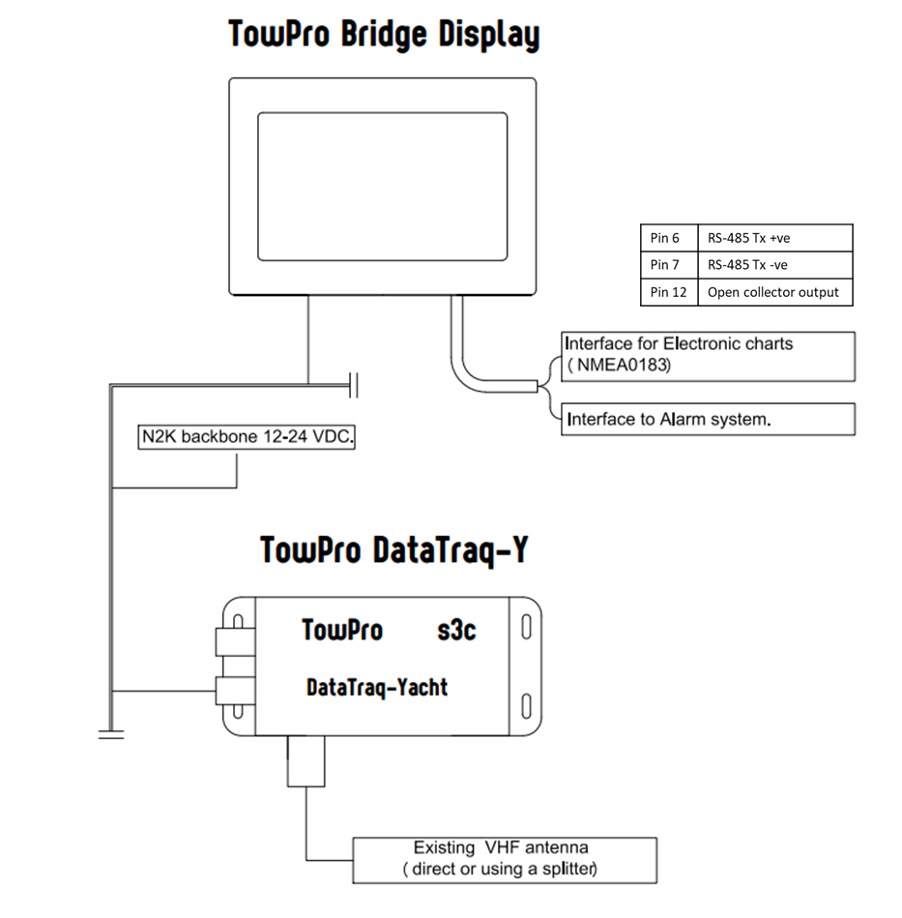

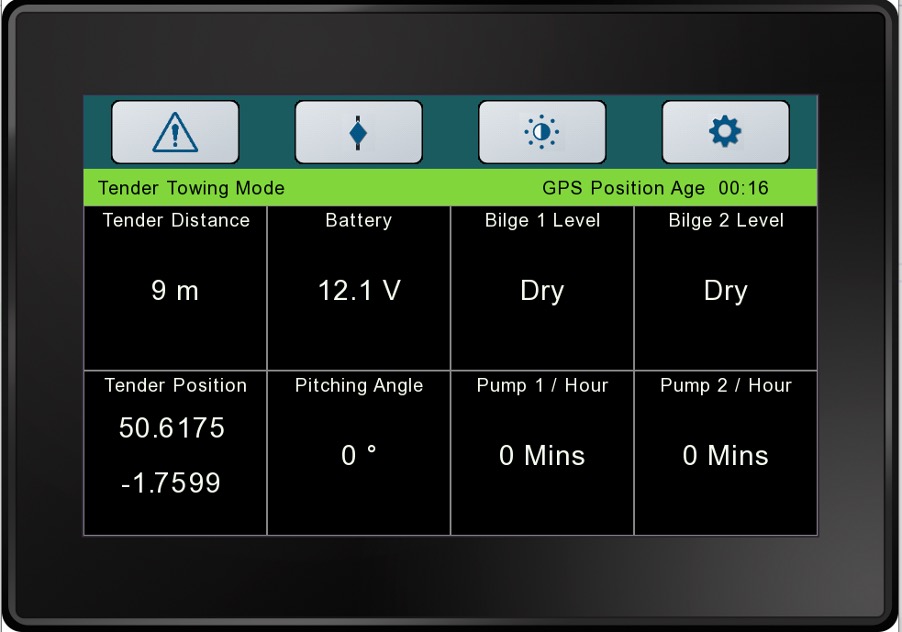

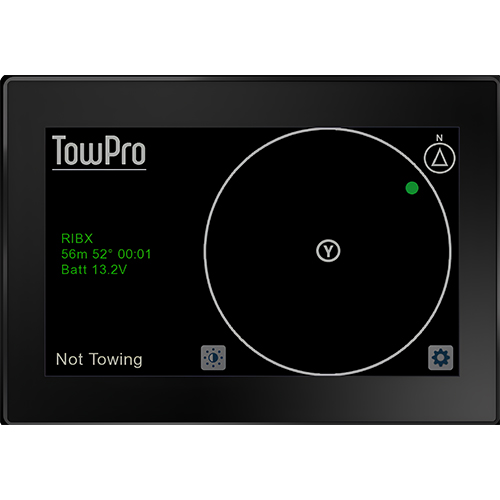

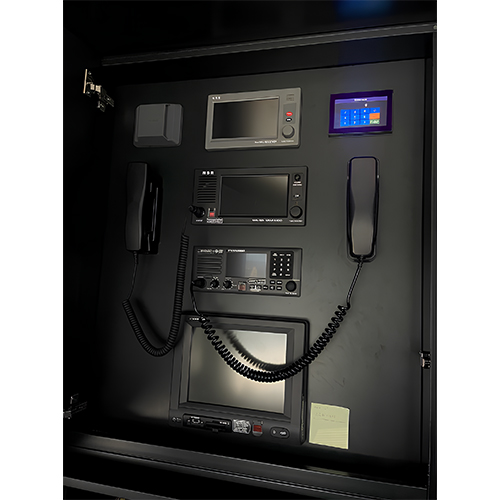

Yacht install Touch Screen HMI

  • Can use existing VHF antenna (with splitter)
  • Interface to existing chart plotter via NMEA0183
  • Interface to AMS via simple I/0 output
  • Wired using NMEA2KBackbone

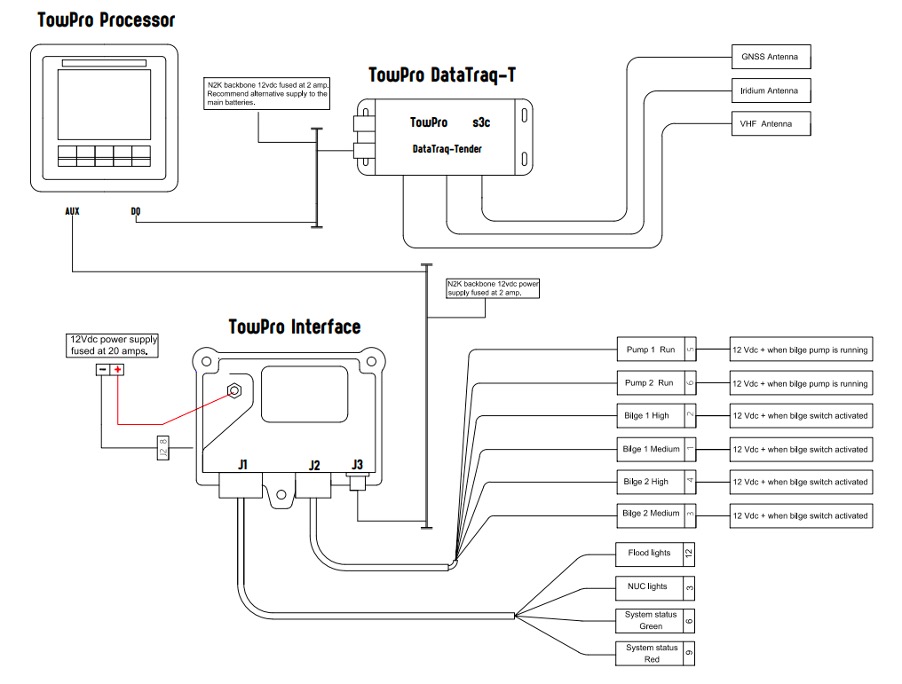

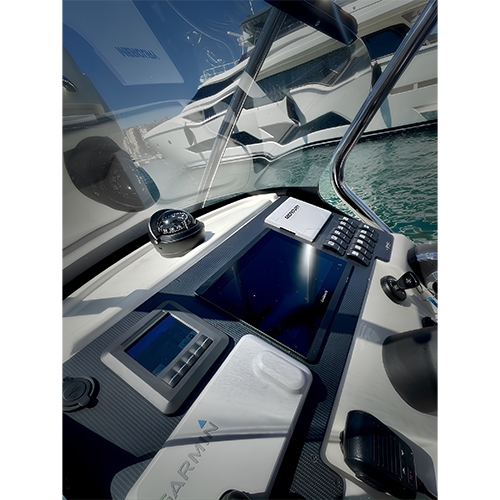

Tender Install

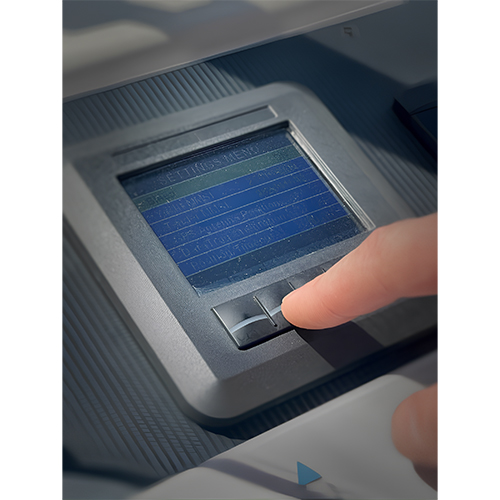

Easy to use configuration screen

  • 12V or 24V compatible
  • Interface for Bilge/Pump monitoring supplied
  • Can be interfaced to NUC lights or flood lights of Tender
  • Dedicated satellite tracking system via Irridium
  • Wired using standard N2K backbones

Full kit includes

TowPro - Yacht

  • TowPro Bridge Display unit (HMI/Screen)
  • TowPro DataTraq-Y unit (VHF)
  • M12 5-way 1m cables (NMEA2000)
  • M12 12-way 1m cable
  • AIS/VHF Antenna splitter
  • Actisense Backbone

TowPro - Tender

  • TowPro Processor unit (HMI/Screen)
  • TowPro DataTraq-T unit (VHF + AIS + Iridium)
  • TowPro Interface unit
  • M12 5-way 1m cables (NMEA2000)
  • Deutsch cables
  • Tender Processor Bracket
  • GNSS/Iridium Antenna
  • Heavy-duty VHF/AIS Antenna
  • TowPro Loom
  • LED Status lights
